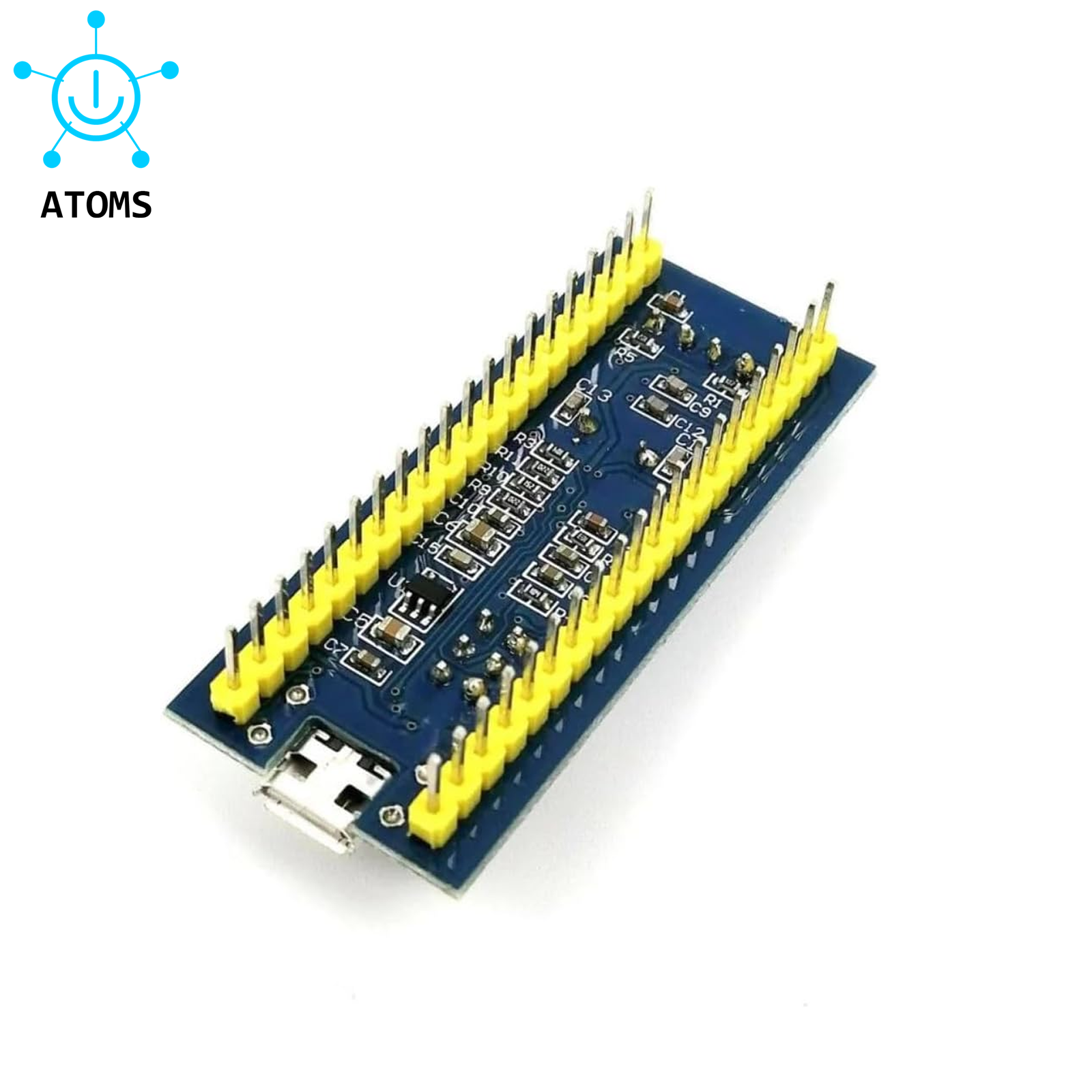

Blue Pill STM32F103C8T6 Development Board

Overview

Blue Pill STM32F103C8T6 Development Board featuring STMicroelectronics' STM32F103C8T6 ARM Cortex-M3 32-bit microcontroller running at 72MHz. A compact, powerful, and low-cost embedded development platform designed for robotics, industrial automation, IoT devices, sensor interfacing, motor control, USB communication, and real-time embedded systems.

The Blue Pill board is widely popular among embedded developers due to its high performance, rich peripherals, low power consumption, and affordable price. It provides significantly more processing power and peripherals compared to traditional 8-bit microcontroller boards while maintaining a compact breadboard-friendly design. Supports STM32CubeIDE, Keil, PlatformIO, Arduino IDE (STM32duino), and bare-metal embedded development.

Specifications

Parameter	Value
Model	Blue Pill STM32F103C8T6
Main Chip	STM32F103C8T6
CPU Core	ARM Cortex-M3 32-bit
Clock Speed	72MHz
Flash Memory	64KB
SRAM	20KB
Operating Voltage	2.0V – 3.6V
Logic Level	3.3V
GPIO Pins	37
ADC	10 channels × 12-bit
PWM Channels	Up to 15
UART / USART	3×
SPI	2×
I2C	2×
CAN Bus	1×
USB	USB 2.0 Full Speed
Timers	4×
RTC	Yes
DMA Channels	7×
Debug Interface	SWD
Crystal Oscillator	8MHz + 32.768kHz
Dimensions	~53mm × 23mm

Pin Configuration

Interface	Pins
UART1	PA9 (TX), PA10 (RX)
UART2	PA2 (TX), PA3 (RX)
UART3	PB10 (TX), PB11 (RX)
SPI1	PA5 (SCK), PA6 (MISO), PA7 (MOSI)
SPI2	PB13 (SCK), PB14 (MISO), PB15 (MOSI)
I2C1	PB6 (SCL), PB7 (SDA)
I2C2	PB10 (SCL), PB11 (SDA)
USB	PA11 (D-), PA12 (D+)
ADC Inputs	PA0–PA7, PB0, PB1
PWM Outputs	Multiple GPIOs
SWD Debug	SWDIO, SWCLK
User LED	PC13
Power	3V3, 5V, GND

Features

• ARM Cortex-M3 @ 72MHz — powerful 32-bit embedded processing
• 37 GPIO pins — flexible hardware interfacing
• 12-bit ADC — accurate analog signal measurement
• USB Full-Speed support — native USB communication
• CAN bus support — industrial communication capability
• Multiple communication interfaces — UART, SPI, I2C, USB
• Hardware PWM generation — motor and LED control
• DMA support — efficient peripheral data transfer
• Compact breadboard-friendly design
• Low power operation
• Arduino IDE compatible
• STM32CubeIDE support
• Professional embedded system architecture
• Affordable development platform
• SWD debugging support

Blue Pill STM32 vs Arduino UNO

Feature	Blue Pill STM32	Arduino UNO
CPU	ARM Cortex-M3 72MHz	AVR 16MHz
Architecture	32-bit	8-bit
Flash	64KB	32KB
SRAM	20KB	2KB
GPIO	37	14
ADC	12-bit	10-bit
USB	Native USB	USB-UART
CAN Bus	Yes	No
UART	3×	1×
Performance	High	Basic
Best For	Advanced embedded	Beginner projects

Wiring Common Modules

HC-SR04 Ultrasonic Sensor

HC-SR04	Blue Pill
VCC	5V
GND	GND
TRIG	PA0
ECHO	PA1

SSD1306 OLED Display

OLED	Blue Pill
VCC	3.3V
GND	GND
SDA	PB7
SCL	PB6

DHT22 Temperature Sensor

DHT22	Blue Pill
VCC	3.3V
DATA	PA8
GND	GND

L298N Motor Driver

L298N	Blue Pill
ENA	PA8
IN1	PB0
IN2	PB1
IN3	PB10
IN4	PB11
ENB	PA9
GND	GND

Common Applications

• Robotics systems
• Industrial automation
• Motor control
• IoT devices
• USB communication projects
• Sensor data acquisition
• Real-time embedded systems
• Smart home controllers
• CAN communication systems
• STEM education projects
• Embedded product prototyping

Getting Started

STM32CubeIDE Setup

1. Download STM32CubeIDE from STMicroelectronics
2. Create a new STM32 project
3. Select STM32F103C8Tx
4. Configure peripherals using CubeMX
5. Generate code and compile
6. Upload using ST-Link programmer

Arduino IDE Setup

1. Open Arduino IDE
2. Go to File → Preferences
3. Add STM32 board manager URL: https://github.com/stm32duino/BoardManagerFiles/raw/main/package_stmicroelectronics_index.json
4. Open Boards Manager
5. Search STM32
6. Install STM32 core package
7. Select: Generic STM32F1 series
8. Board: BluePill F103C8
9. Upload using ST-Link or USB bootloader

Basic LED Blink Example

#define LED_PIN PC13

void setup() {
    pinMode(LED_PIN, OUTPUT);
}

void loop() {

    // PC13 LED is active LOW
    digitalWrite(LED_PIN, LOW);
    delay(500);

    digitalWrite(LED_PIN, HIGH);
    delay(500);
}

Package Includes

• 1× Blue Pill STM32F103C8T6 Board
• 1× Male Pin Header Set

Notes

• GPIO logic level is 3.3V only
• Some GPIO pins are 5V tolerant
• PC13 onboard LED is active LOW
• USB bootloader may not be preinstalled
• ST-Link V2 programmer recommended
• Avoid powering from USB and external 5V simultaneously
• Some clone boards may contain non-genuine STM32 chips

Applications in Embedded Systems

The STM32F103 Blue Pill is widely used in:

• Robotics and automation
• Industrial controllers
• Smart IoT devices
• Motor driver systems
• Sensor interfacing
• USB communication devices
• Real-time monitoring systems
• CAN bus communication
• Embedded product development

Its balance of low cost, high performance, and rich peripherals makes it one of the most popular STM32 development boards for students, makers, and professional embedded engineers.
